Removal and Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the over flow hose (A).
Remove the reservoir tank (B).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

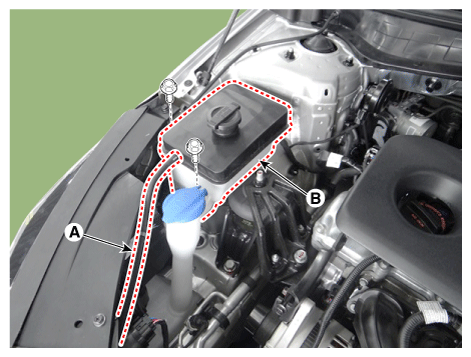

Fig 1: Locating Over Flow Hose And Reservoir Tank
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
