Removal and Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery negative terminal.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Drain the engine coolant.
(Refer to Cooling System - "COOLANT ")
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Disconnect the cooling fan connector (A).

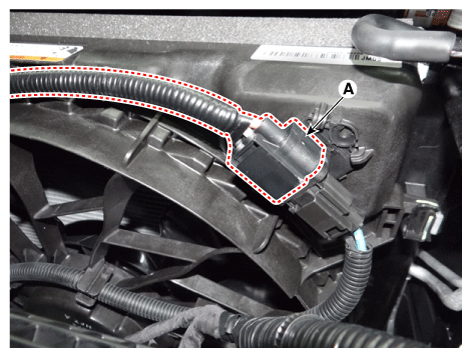

Fig 1: Locating Cooling Fan Connector
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the radiator upper hose (A).

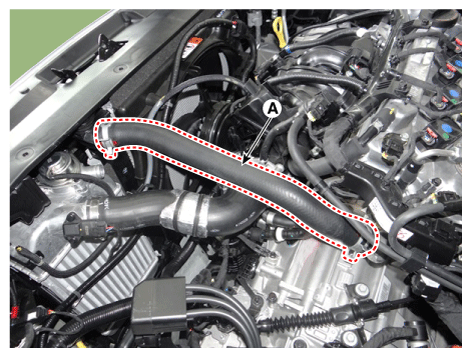

Fig 2: Locating Radiator Upper Hose
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the radiator lower hose (A).

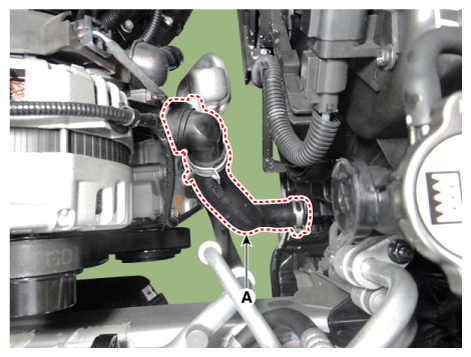

Fig 3: Locating Radiator Lower Hose
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the reservoir hose (A).

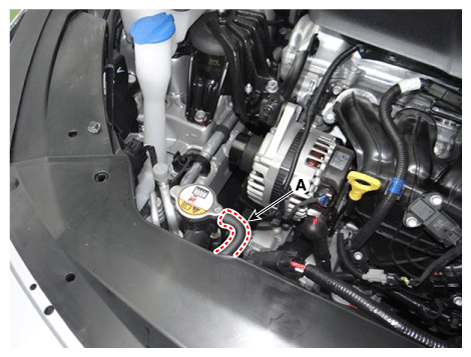

Fig 4: Locating Reservoir Hose
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front bumper cover.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER COVER ")
Remove the radiator upper member bracket (A).
Tightening torque:

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb.ft)

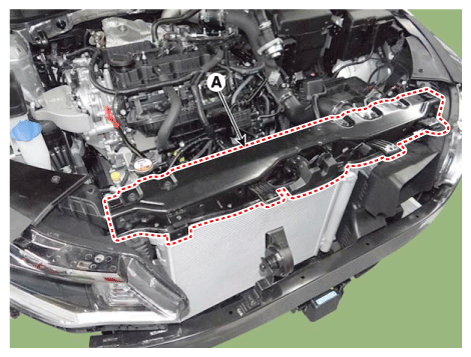

Fig 5: Locating Radiator Upper Member Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Remove the air guide (A).
Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.7 - 8.6 lb.ft)

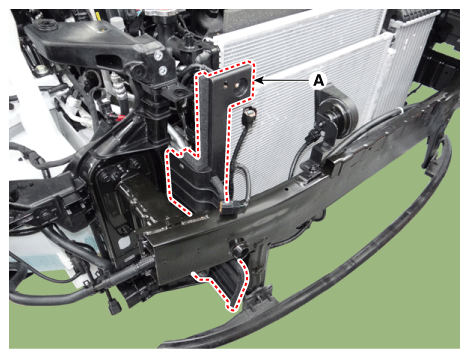

Fig 6: Locating Air Guide
Courtesy of KIA MOTORS AMERICA, INC.
Remove the radiator assembly (A).

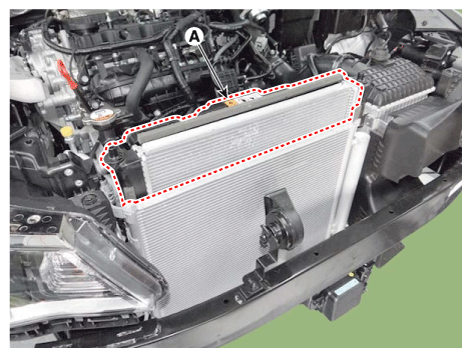

Fig 7: Locating Radiator Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the cooling fan (A) from the radiator (B).

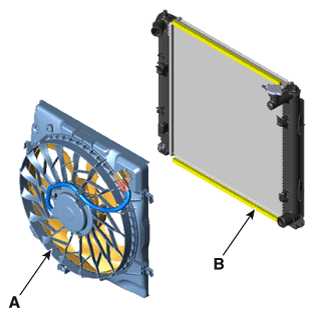

Fig 8: Locating Cooling Fan And Radiator
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Fill the radiator with coolant.
(Refer to Cooling System - "COOLANT ")
Start engine and check for leaks.
