Removal and Installation: Resistor

WARNING: This page is about a different variant/trim than selected.

Disconnect the resistor connector (A) and the fan motor connector (B).

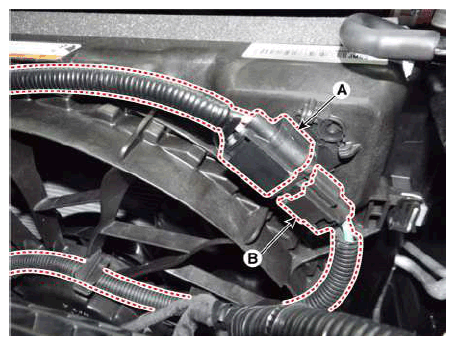

Fig 1: Locating Resistor Connector And Fan Motor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the resistor (A).
Tightening torque:

1.8 - 2.4 N.m (0.18 - 0.25 kgf.m, 1.3 - 1.8 lb.ft)

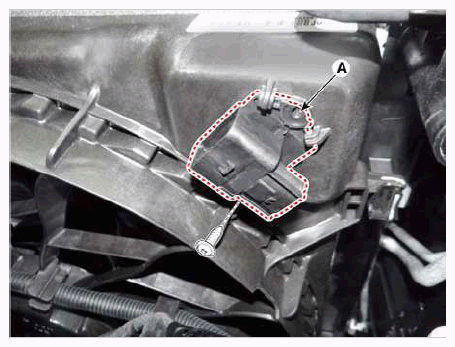

Fig 2: Locating Resistor
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
