Cooling Fan Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative (-) terminal.
  2. Remove the air duct.

    (Refer to Intake and Exhaust System - "AIR CLEANER ")

  3. Disconnect the resistor connector (A).

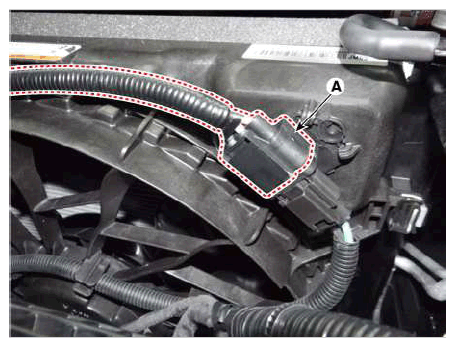

    Fig 1: Locating Resistor Connector
    G11822766Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the cooling fan assembly (A).

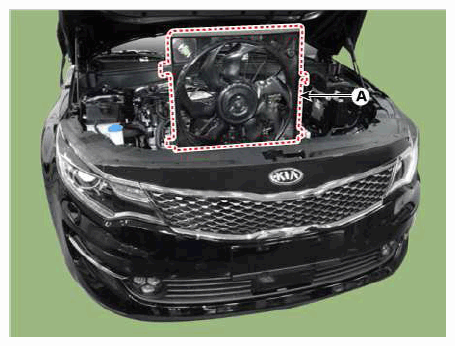

    Fig 2: Locating Cooling Fan Assembly
    G11822767Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
