Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the cooling fan (A) from the cooling fan assembly.
Tightening torque:

2.8 - 3.2 N.m (0.28 - 0.33 kgf.m, 2.03 - 2.39 lb.ft)

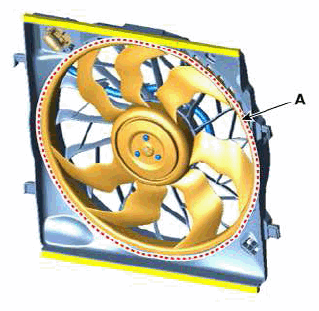

Fig 1: Locating Cooling Fan
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fan motor connector (A).

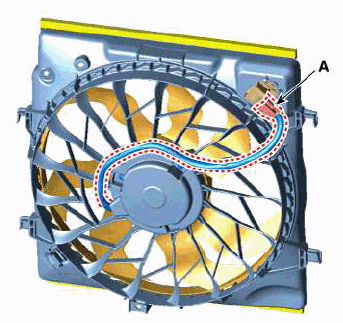

Fig 2: Locating Fan Motor Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fan motor (A) from the cooling fan shroud.
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

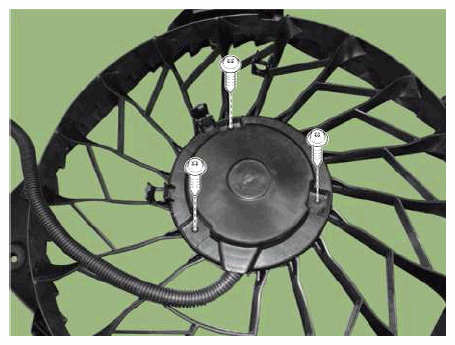

Fig 3: Removing Fan Motor From Cooling Fan Shroud
Courtesy of KIA MOTORS AMERICA, INC.

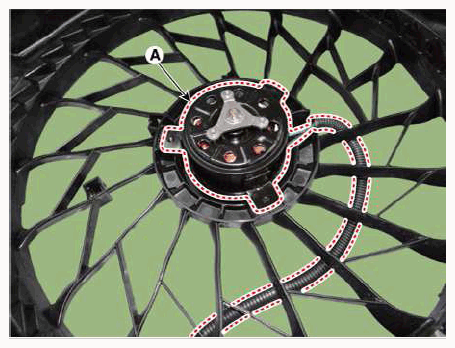

Fig 4: Locating Fan Motor
Courtesy of KIA MOTORS AMERICA, INC.
Assemble in the reverse order of disassembly.
