Rear Muffler: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Detach the rubber hanger (A) from rear muffler.
  2. Remove the rear muffler (B).

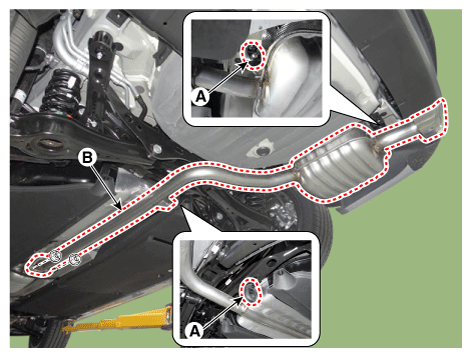

    Fig 1: Locating Rear Muffler And Rubber Hanger
    G11823081Courtesy of KIA MOTORS AMERICA, INC.
  3. Install in the reverse order of removal.
