Catalytic Converter & Center Muffler

WARNING: This page is about a different variant/trim than selected.

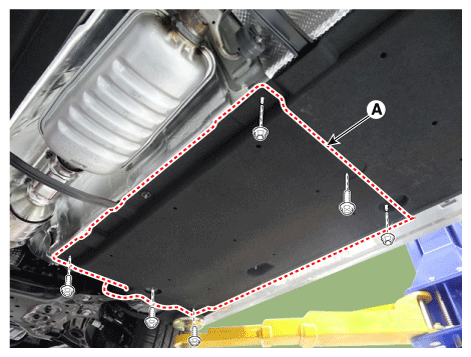

  1. Remove the RH floor under cover (A).
    Fig 1: Removing RH Floor Under Cover
    G11823078Courtesy of KIA MOTORS AMERICA, INC.

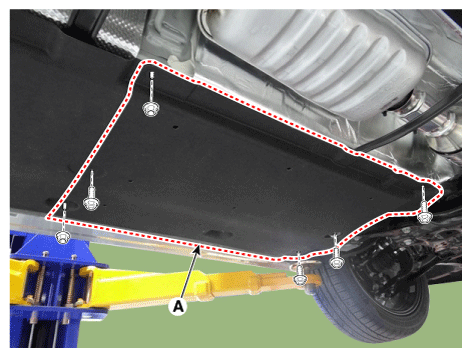

  2. Remove the LH floor under cover (A).
    Fig 2: Removing LH Floor Under Cover
    G11823079Courtesy of KIA MOTORS AMERICA, INC.

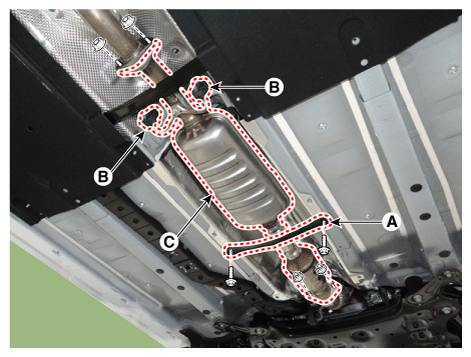

  3. Remove the bracket (A).
  4. Detach the rubber hanger (B) from the catalytic converter & center muffler.
  5. Remove the catalytic converter & center muffler (C).
    Fig 3: Removing Catalytic Converter And Center Muffler
    G11823080Courtesy of KIA MOTORS AMERICA, INC.
  6. Install in the reverse order of removal.
