Air Cleaner Element Replacement

WARNING: This page is about a different variant/trim than selected.

Open the air cleaner element cover (A) by lifting up the air cleaner element cover handle (B).

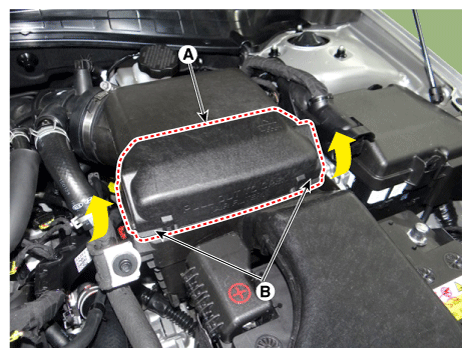

Fig 1: Lifting Up Air Cleaner Element Cover Handle
Courtesy of KIA MOTORS AMERICA, INC.
Unlock the air cleaner element camshaft (A) by turning in the direction of arrow.

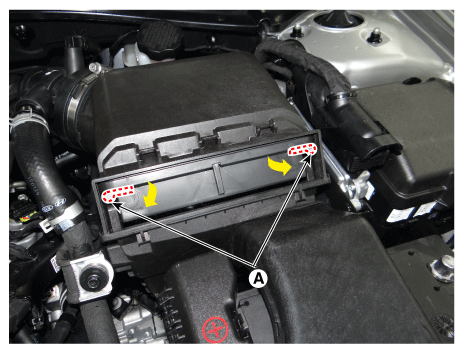

Fig 2: Unlocking Air Cleaner Element Camshaft
Courtesy of KIA MOTORS AMERICA, INC.
Replace the air cleaner element (A) with a new one.

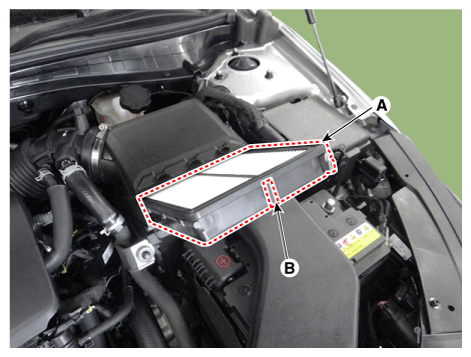

Fig 3: Locating Air Cleaner Element And Handle
Courtesy of KIA MOTORS AMERICA, INC.

Information

Grab the handle (B) then pull out the air cleaner element.
Close the service cover by hooking the clamp.
