Engine Room Front Under Cover

WARNING: This page is about a different variant/trim than selected.

Remove the engine room front under cover (A).
Tightening torque:

3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

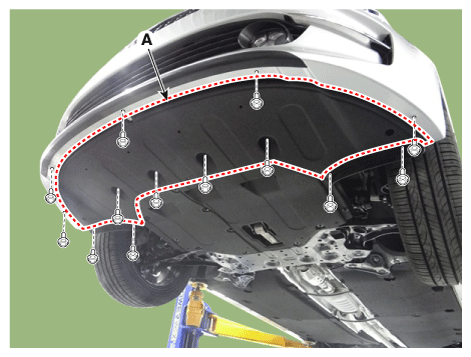

Fig 1: Removing Engine Room Front Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
