Engine Mounting Bracket

WARNING: This page is about a different variant/trim than selected.

Remove the engine room under cover.
(Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")
Install the jack to the edge of oil pan to support the engine.

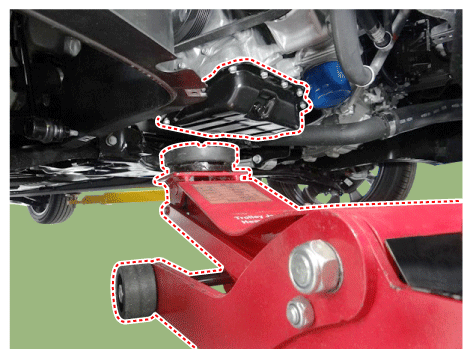

Fig 1: Installing Jack To Edge Of Oil Pan
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Insert the rubber block between jack and oil pan.
Remove the engine mounting support bracket (A).
Tightening torque

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb.ft)

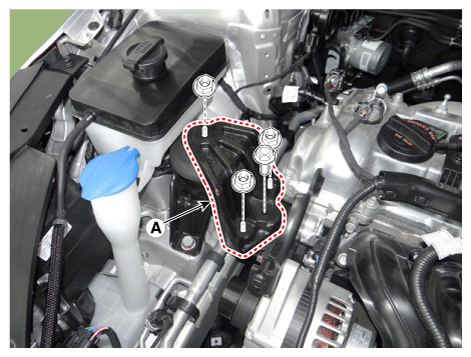

Fig 2: Removing Engine Mounting Support Bracket
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Always use a new nuts.
Separate the reservoir tank to obtain space for remove the engine mounting bracket.
(Refer to Cooling System - "RESERVOIR TANK ")
Remove the engine mounting bracket (A).
Tightening torque:

68.7 - 88.3 N.m (7.0 - 9.0 kgf.m, 50.6 - 65.1 lb.ft)

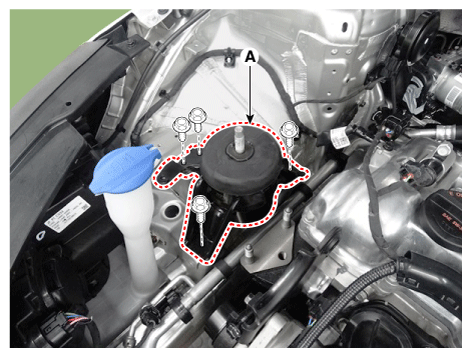

Fig 3: Removing Engine Mounting Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
