Removal and Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine cover (A).

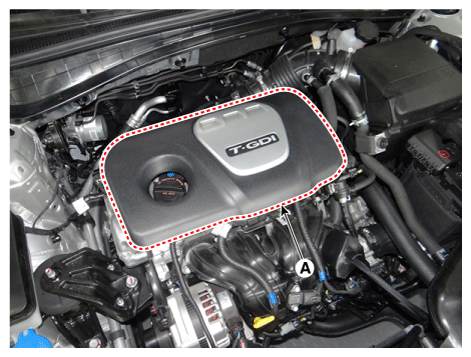

    Fig 1: Locating Engine Cover
    G11823002Courtesy of KIA MOTORS AMERICA, INC.
  2. Install in the reverse order of removal.
