Removal and Installation

WARNING: This page is about a different variant/trim than selected.

Remove the drive belt.
(Refer to Drive Belt System - "DRIVE BELT ")
Remove the idler (A).
Tightening torque:

42.2 - 53.9 N.m(4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)

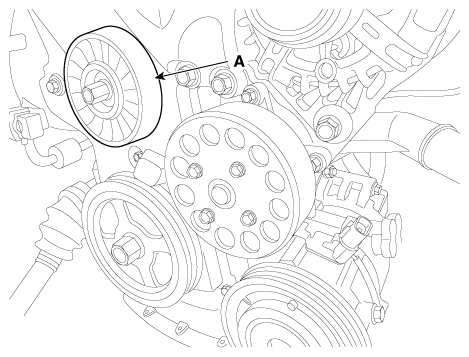

Fig 1: Locating Idler
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
