Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative terminal.
  2. Loosen the alternator mounting bolts (A).
  3. Loosen the drive belt tension by loosening the adjusting bolt (B).

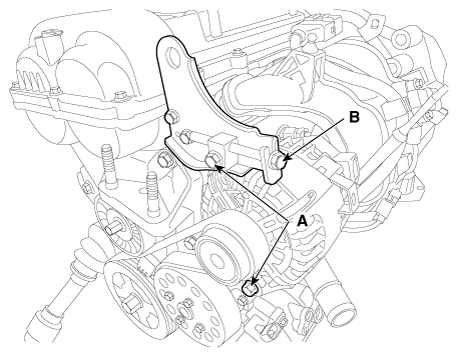

    Fig 1: Locating Alternator Mounting Bolts And Drive Belt Tension Adjusting Bolt
    G11822984Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the drive belt (A).

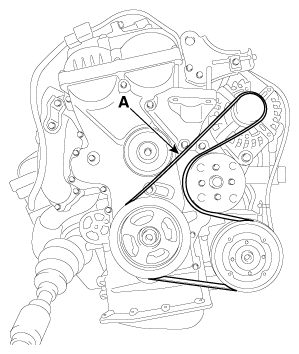

Fig 2: Engine Drive Belt Routing Diagram
G11822985Courtesy of KIA MOTORS AMERICA, INC.
