Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Turn the crankshaft pulley clockwise, and align its groove with the timing mark of the timing chain cover.

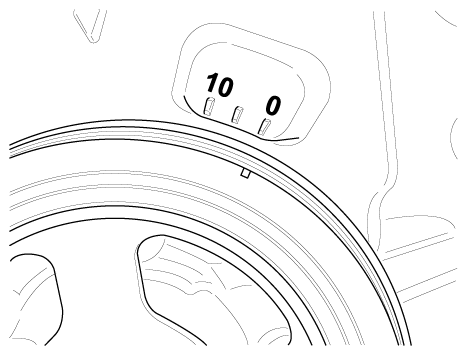

Fig 1: Aligning Crankshaft Pulley Groove With Timing Mark Of Timing Chain Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the timing chain cover.
(Refer to Timing System - "TIMING CHAIN COVER ")
Align the timing marks of the CVVT sprockets with the upper surface of the cylinder head to make No. 1 cylinder be positioned at TDC.
NOTE: Check the dowel pin of the crankshaft for facing upside of the engine at this moment.

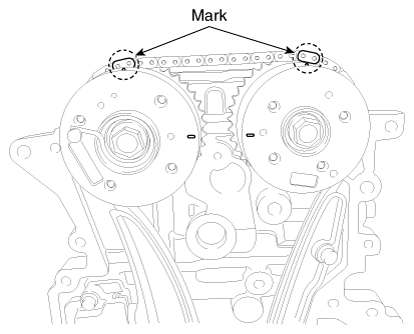

Fig 2: Locating Timing Marks Of CVVT Sprockets (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

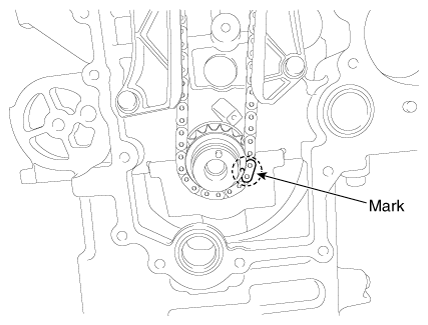

Fig 3: Locating Timing Marks Of CVVT Sprockets (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the timing chain auto tensioner (A).

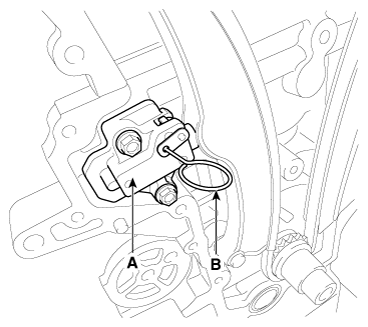

Fig 4: Locating Timing Chain Auto Tensioner And Pin
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Before removing the tensioner, fix the piston of the tensioner with a pin through the hole (B) at compressed position.
Remove the timing chain tensioner arm (A) and guide (B).

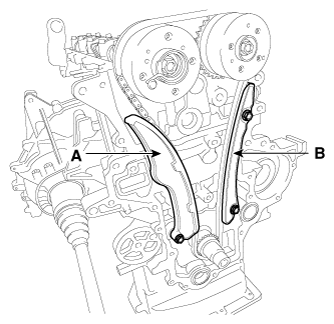

Fig 5: Locating Timing Chain Tensioner Arm And Guide
Courtesy of KIA MOTORS AMERICA, INC.
Remove the timing chain (A).

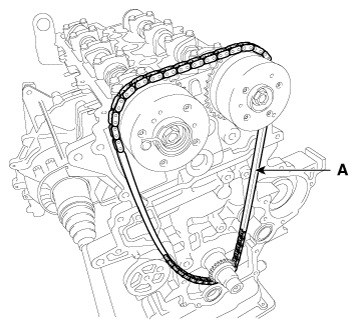

Fig 6: Locating Timing Chain

Courtesy of KIA MOTORS AMERICA, INC.
