Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.

Remove the crankshaft damper pulley.
(Refer to Timing System - "CRANKSHAFT DAMPER PULLEY ")
Remove the front oil seal (A).

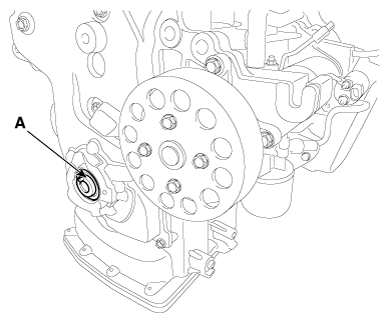

Fig 1: Locating Front Oil Seal
Courtesy of KIA MOTORS AMERICA, INC.
Using the SST (09455-21200) (A), install a new front oil seal.

Fig 2: Installing Front Oil Seal Using SST (09455-21200)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Do not reuse the front oil seal.

NOTE: Insert the oil seal into the timing chain cover as shown in illustration.

Fig 3: Locating Timing Chain Cover And Front Oil Seal

Courtesy of KIA MOTORS AMERICA, INC.
