ASP Calibration procedures

WARNING: This page is about a different variant/trim than selected.
  1. Connect self - diagnosis connector (16pins) located in the lower of driver side crash pad to self - diagnosis device.
  2. Turn the self - diagnosis device after key is ON.
  3. Turn the steering wheel to straight ahead position.
  4. After Selecting the "vehicle model" and "system", select the "ASP Calibration" on GDS vehicle selection screen.

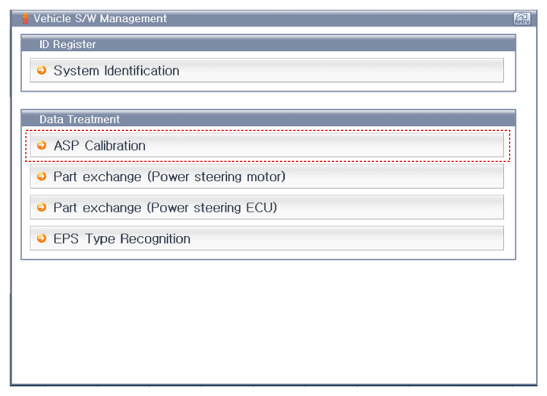

    Fig 1: Screen Display - Selecting ASP Calibration (1 Of 2)
    G11816596Courtesy of KIA MOTORS AMERICA, INC.

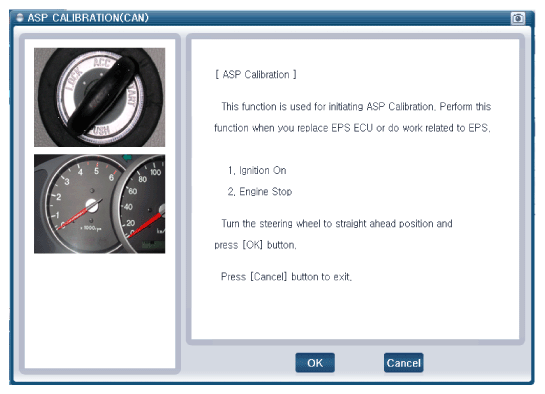

    Fig 2: Screen Display - ASP Calibration (2 Of 2)
    G11816597Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the DTC.
  6. Turn off the IG switch and wait for 10 seconds or more before starting the engine. And then make sure that MDPS works properly.
