Section 8 (Electric Power Steering System (HEV))
>>
Electric Power Steering
>>
Components And Components Location
>>
Components
>>
MDPS Circuit Diagram
MDPS Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

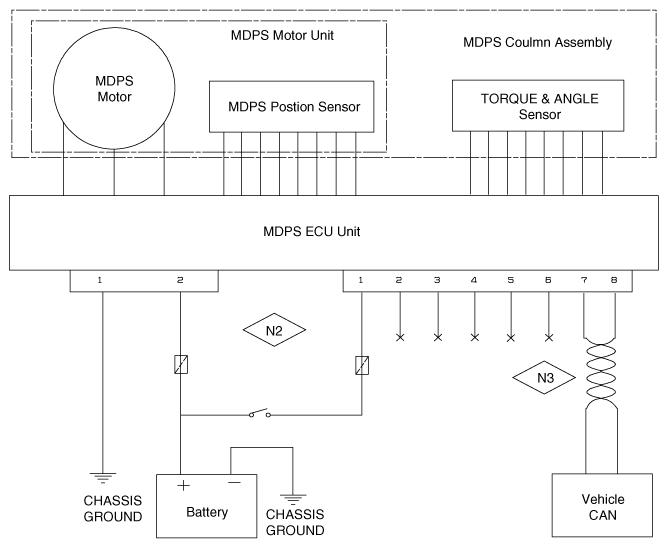

Fig 1: MDPS Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
