Harness Connector

WARNING: This page is about a different variant/trim than selected.

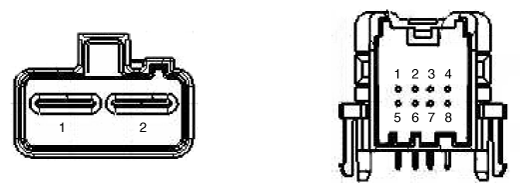

Fig 1: MDPS Harness Connector
G11816498Courtesy of KIA MOTORS AMERICA, INC.
Type Pin No Description
Battery 1 Battery -
2 Battery +
Vehicle 1 IGN
2 -
3 -
4 -
5 -
6 -
7 High_CAN
8 Low_CAN
