Calibration Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Connect the GDS. (CAN line or OBD connector)
  2. Turn ignition switch on.
  3. Press calibration button of the pressure sensor.
  4. Pressure sensor calibration procedure is performed. (Calibration records, DTC codes erasure)

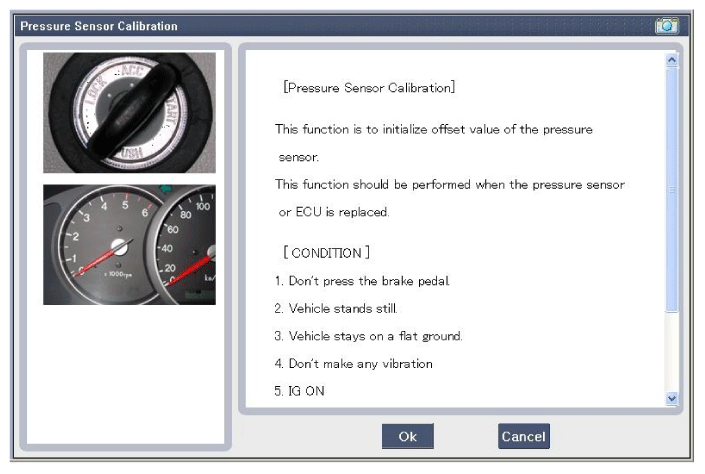

    Fig 1: Screen Display - Pressure Sensor Calibration
    G11816774Courtesy of KIA MOTORS AMERICA, INC.
  5. Turn ignition switch off and on after calibration procedure.
  6. Confirm success of calibration.
