1. Initial Status

WARNING: This page is about a different variant/trim than selected.

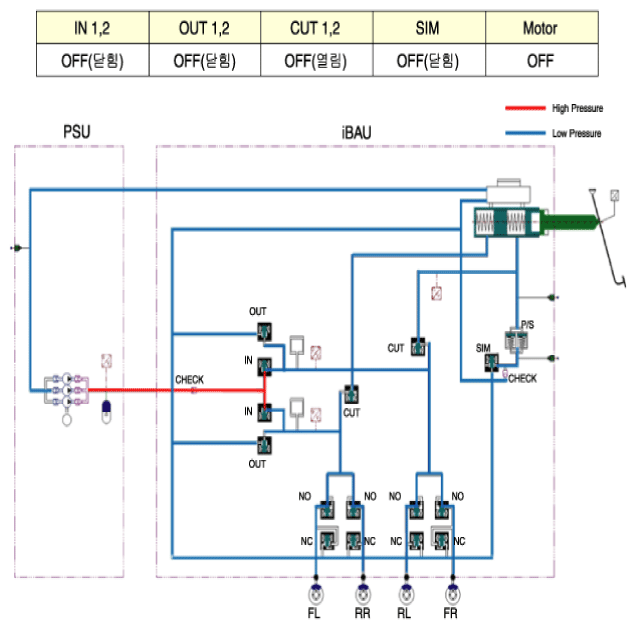

Fig 1: AHB System - Initial Status
G11816747Courtesy of KIA MOTORS AMERICA, INC.

High pressure (180 bar) between the PSU and the IBAU is generated consistently. Therefore, before removing the PSU or the IBAU, high pressure between them should be reduced for safety by conducting "High pressure release mode" of GDS connected to TF HEV.
