NVLD(Natural Vacuum Leakage Detection): Troubleshooting: Waveform

WARNING: This page is about a different variant/trim than selected.

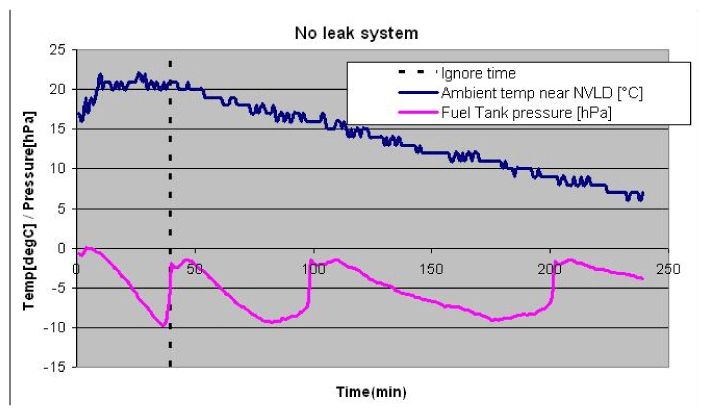

Fig 1: Natural Vacuum Leakage Detection Timing And Pressure Graph (No Leak)

Courtesy of KIA MOTORS AMERICA, INC.

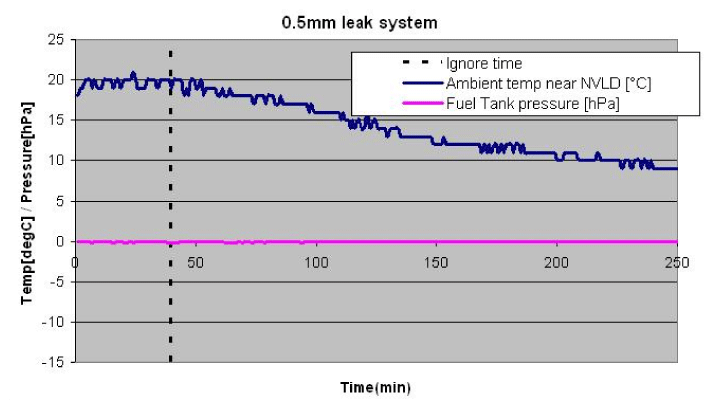

Fig 2: Natural Vacuum Leakage Detection Timing And Pressure Graph (0.5MM Leak System)

Courtesy of KIA MOTORS AMERICA, INC.
