Description And Operation: Description

WARNING: This page is about a different variant/trim than selected.

A ratchet tightening device on the threaded fuel filler cap reduces the chances of incorrect installation, which seals the fuel filler. After the gasket on the fuel filler cap and the filler neck flange contact each other, the ratchet produces a loud clicking noise indicating the seal has been set.

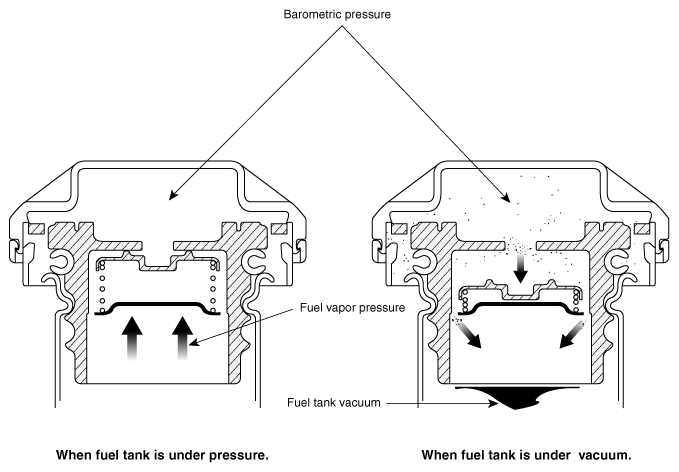

Fig 1: Fuel Filler Cap Operation Diagram
G11815647Courtesy of KIA MOTORS AMERICA, INC.
