Inspection (With GDS)

WARNING: This page is about a different variant/trim than selected.

Check BCM input/output specification of multifunction switch using the GDS. If the specification is abnormal, replace the lamp or wiper switch.
If diagnosis is required on the multifunction switch, select model and "BCM".
To consult the present input/output value of BCM, "Current DATA". It provides information of BCM input/output conditions of power supply, turn signal/brake lamp, headlamp, door, locks, outside mirror, wiper, auto-light and transmitters etc.

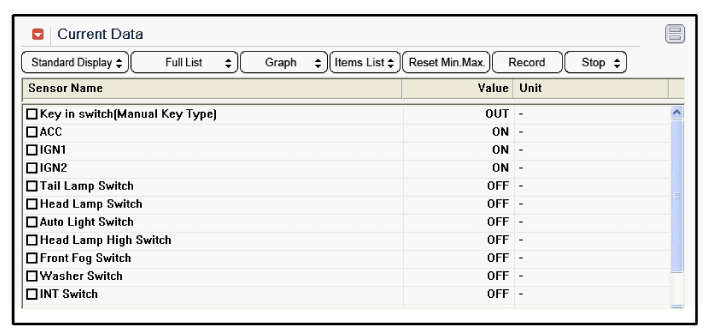

Fig 1: Display Of Current Data Screen
Courtesy of KIA MOTORS AMERICA, INC.
To perform compulsory operation on BCM input factors, select "ACTUATION TEST".

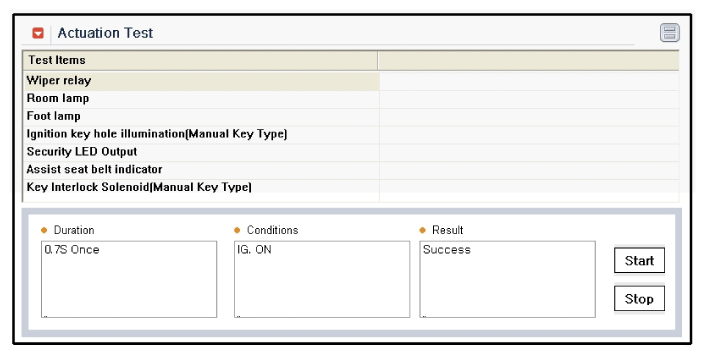

Fig 2: Display Of Wiper Relay Actuation Test

Courtesy of KIA MOTORS AMERICA, INC.
