Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

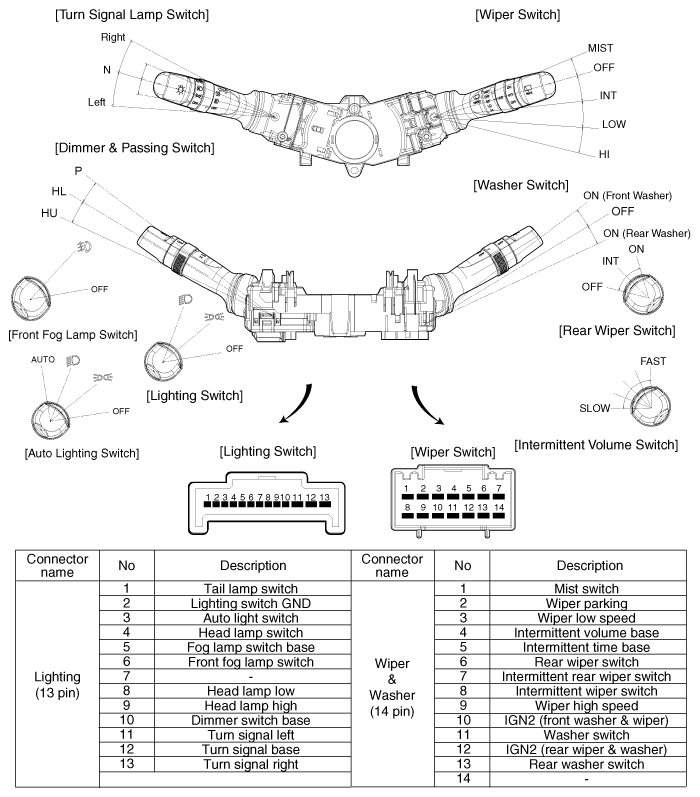

Fig 1: Multifunction Switch Component Identifications & Connector Descriptions
G11817735Courtesy of KIA MOTORS AMERICA, INC.

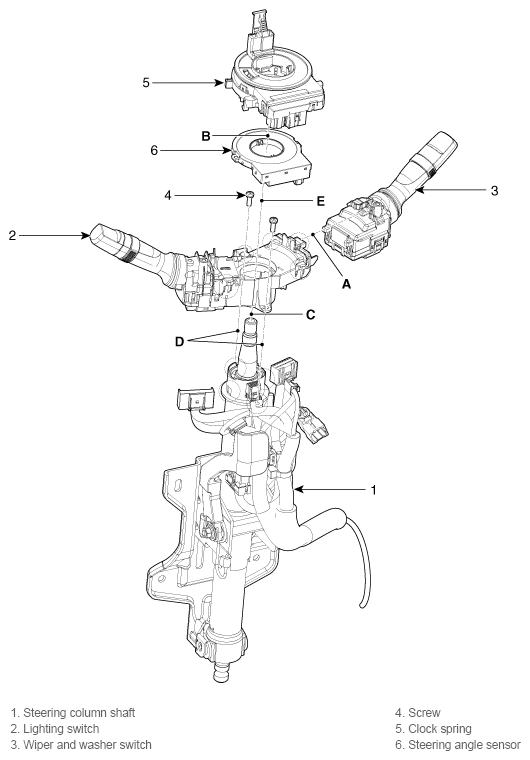

Fig 2: Multifunction Switch Components Location
G11817736Courtesy of KIA MOTORS AMERICA, INC.
