Armrest Replacement

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Remove the floor console assembly.
  2. After loosening the mounting screws, then remove the rear console cover (A).

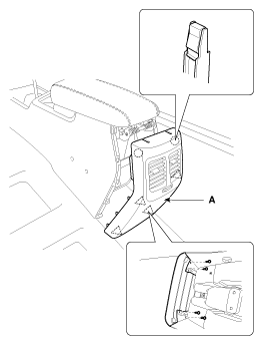

    Fig 1: Removing Rear Console Cover
    G11817032Courtesy of KIA MOTORS AMERICA, INC.
  3. After loosening the mounting screws, then remove the armrest assembly (A).
    Fig 2: Removing Armrest Assembly
    G11817033Courtesy of KIA MOTORS AMERICA, INC.
  4. Installation is the reverse of removal.
    NOTE:
    • Replace any damaged clips.
