Section 39 (Front Suspension System (HEV))
>>
Front Suspension System
>>
Components And Components Location
>>
Components Location
Components Location
WARNING:
This page is about a different variant/trim than selected.

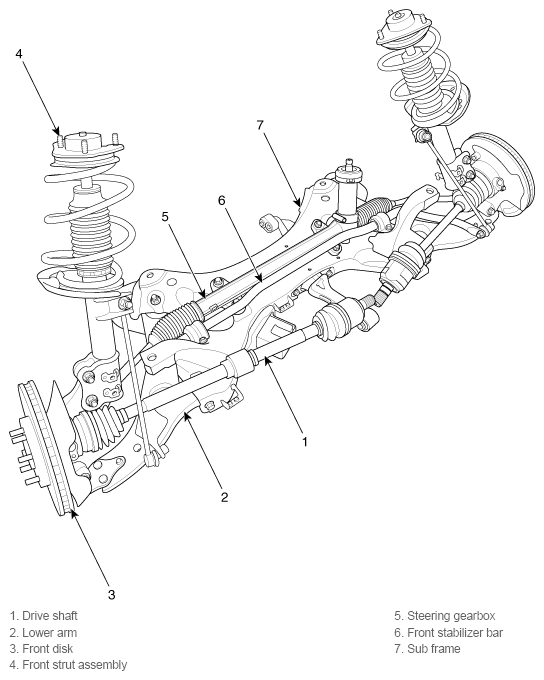

Fig 1: Front Suspension System Components Location
Courtesy of KIA MOTORS AMERICA, INC.
