Section 36 (Engine Control System (HEV))
>>
Purge Control Solenoid Valve (PCSV)
>>
Schematic Diagram
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

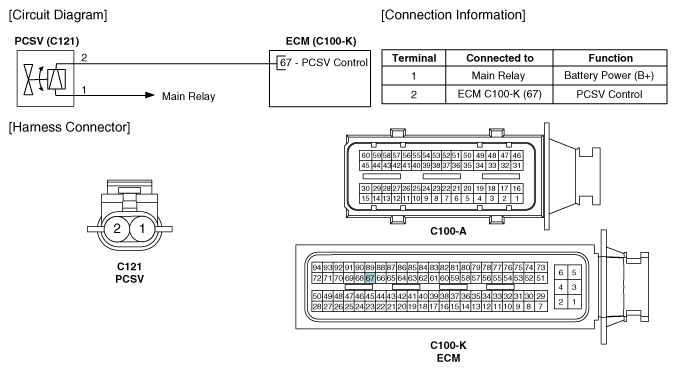

Fig 1: Purge Control Solenoid Valve Circuit Diagram & Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
