Section 36 (Engine Control System (HEV))
>>
Injector
>>
Schematic Diagram
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

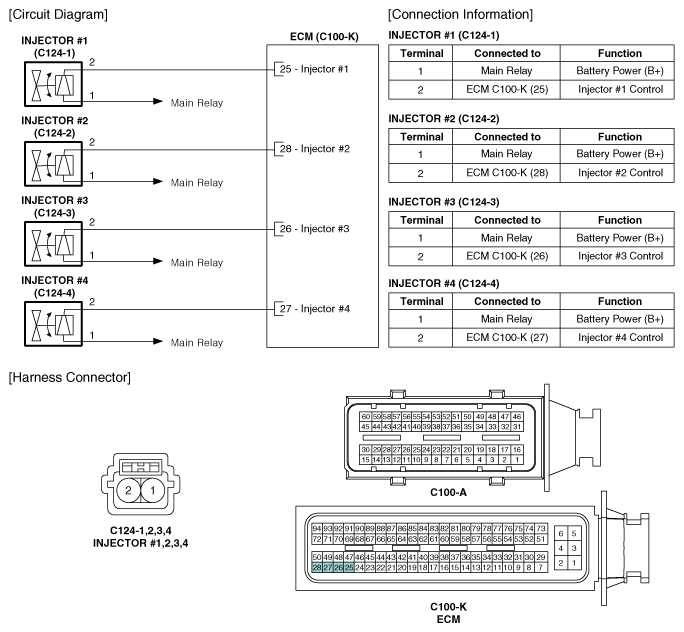

Fig 1: Injector Circuit Diagram & Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
