Engine Coolant Temperature Sensor (ECTS)
>>
Schematic Diagram
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

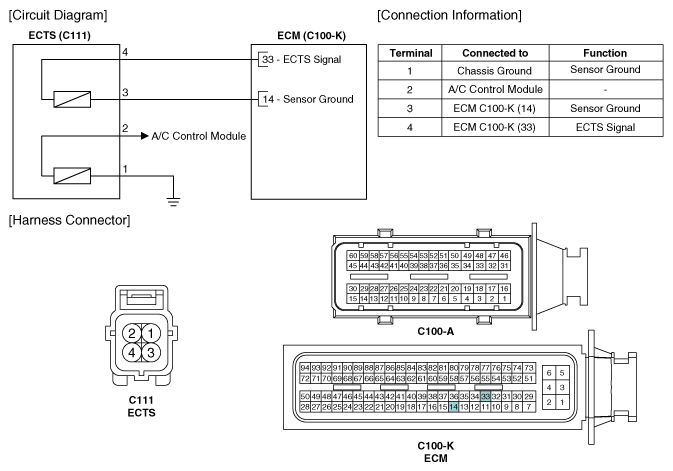

Fig 1: ECTS Circuit Diagram & Terminal Descriptions
Courtesy of KIA MOTORS AMERICA, INC.
