Section 36 (Engine Control System (HEV))
>>
CVVT Oil Control Valve (OCV)
>>
Schematic Diagram
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

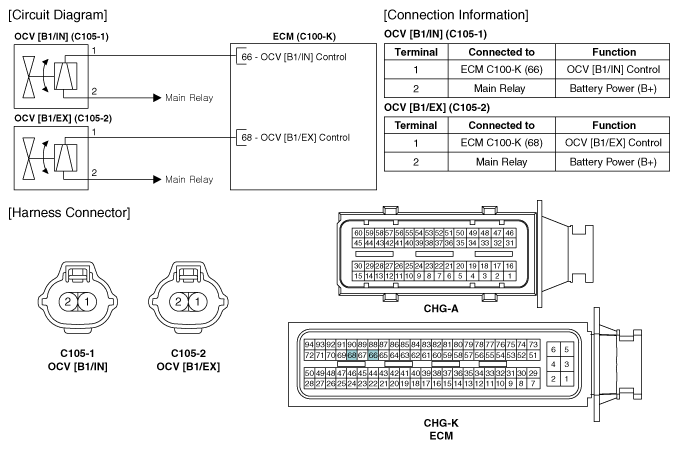

Fig 1: OCV Circuit Diagram & Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
