Communication Diagnosis With GDS (Self Diagnosis)

WARNING: This page is about a different variant/trim than selected.
  1. Communication diagnosis checks that the each linked components operates normal.
  2. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  3. After IG ON, select the "DTC".

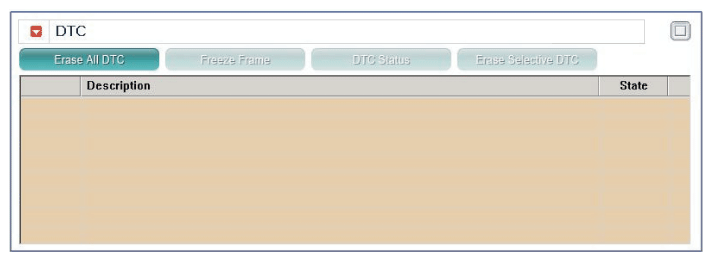

Fig 1: Display - Communication Diagnosis Checks Screen
G11817809Courtesy of KIA MOTORS AMERICA, INC.
