Antenna Actuation Diagnosis

WARNING: This page is about a different variant/trim than selected.
  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "ACTUATION TEST".

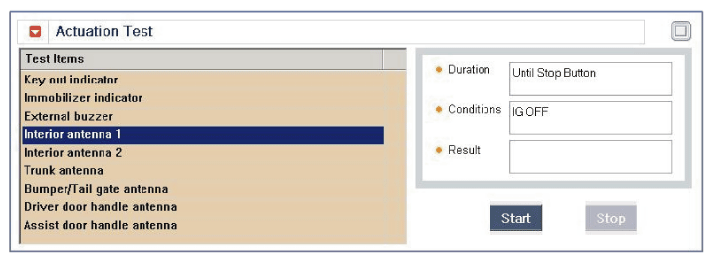

    Fig 1: Display - Antenna Actuation Diagnosis Screen
    G11817810Courtesy of KIA MOTORS AMERICA, INC.
  3. Set the smart key near the related antenna and operate it with a GDS.

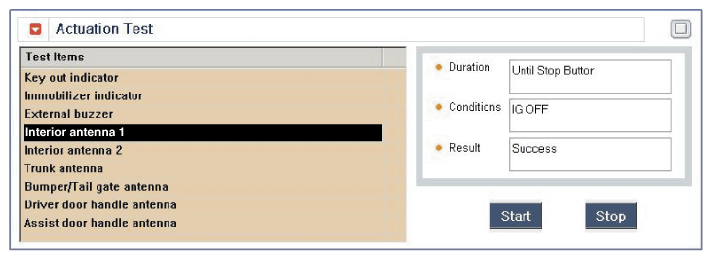

    Fig 2: Display - Interior Antenna 1 Screen
    G11817811Courtesy of KIA MOTORS AMERICA, INC.
  4. If the LED of smart key is blinking, the smart key is normal.
  5. If the LED of smart key is not blinking, check the voltage of smart key battery.
  6. Antenna actuation
