Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. The rear glass defogger switch inputs can be checked using the GDS.
  2. To check the input value of rear glass defogger switch, select option "Body Control Module".
  3. To consult the present input/output value of BCM, "Current DATA". It provides information of BCM input/output conditions of smart junction box.

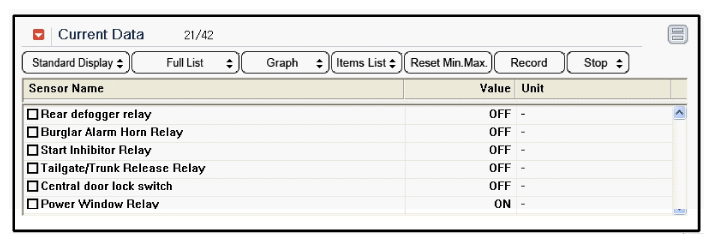

    Fig 1: Screen Display OF Rear Glass Defogger Switch Current Data
    G11818143Courtesy of KIA MOTORS AMERICA, INC.
  4. To check the input value of rear glass defogger switch in force mode, select option "Actuation Test of smart junction box".

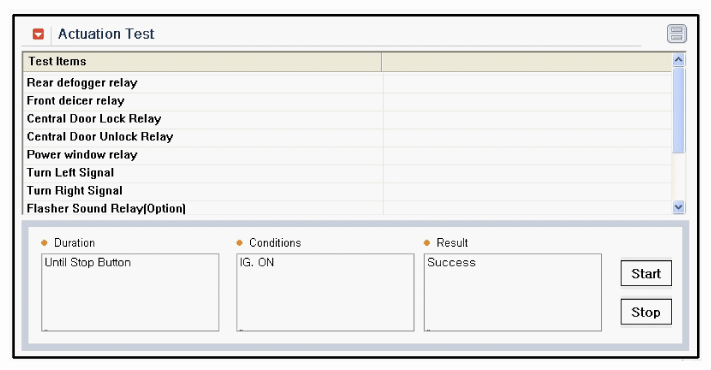

Fig 2: Screen Display Of Rear Glass Defogger Switch Actuation Test
G11818144Courtesy of KIA MOTORS AMERICA, INC.
