Head Lamp And Fog Lamp Aiming Point

WARNING: This page is about a different variant/trim than selected.

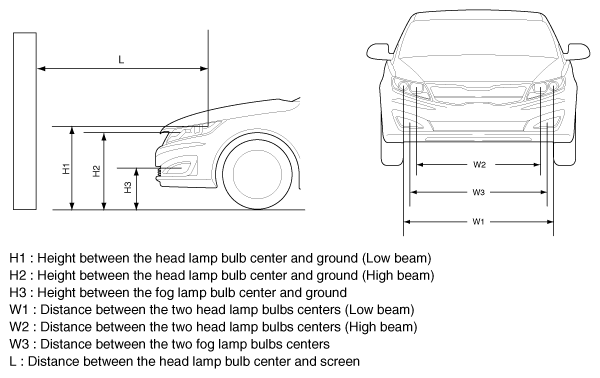

Fig 1: Measuring Head Lamp And Fog Lamp Aiming Point

Courtesy of KIA MOTORS AMERICA, INC.

Standard

Vehicle condition	H1	H2	H3	W1	W2	W3	L
Without driver	28.0(711)	26.9(684)	14.2(361)	53.7(1, 385)	43.5(1, 105)	55.7(1.416)	Refer to aiming condition
With driver	27.4(696)	26.7(679)	14.0(356)	53.7(1, 385)	43.5(1, 105)	55.7(1.416)	Refer to aiming condition

Option

Vehicle condition	H1	H2	h3	W1	W2	W3	L
Without driver	28.0(712)	26.7(679)	14.2(360)	53.7(1, 358)	42.4(1.078)	55.7) (1, 414)	Refer aiming condition
With driver	27.4(697)	26.5(674)	14.0(355)	53.7(1, 358)	42.4(1.078)	55.7) (1, 414)	Refer aiming condition

Head Lamp (Low beam)
- Turn the low beam on without driver aboard.
- The cut-off line should be projected in the cut-off line shown in the picture.
- If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
Fig 2: Cut-Off Line Projection Area
Courtesy of KIA MOTORS AMERICA, INC.
Turn the front fog lamp on without the driver aboard.
The cut-off line should be projected in the allowable range (shaded region)

Fig 3: Cut-Off Line Projection Allowable Range (Shaded Region)
Courtesy of KIA MOTORS AMERICA, INC.
