Components And Components Location: Component

WARNING: This page is about a different variant/trim than selected.

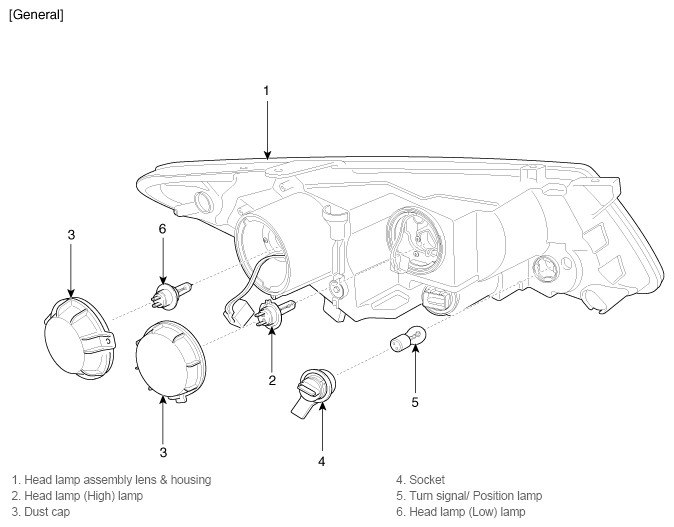

Fig 1: Head Lamps Components Location (General)
G11818228Courtesy of KIA MOTORS AMERICA, INC.

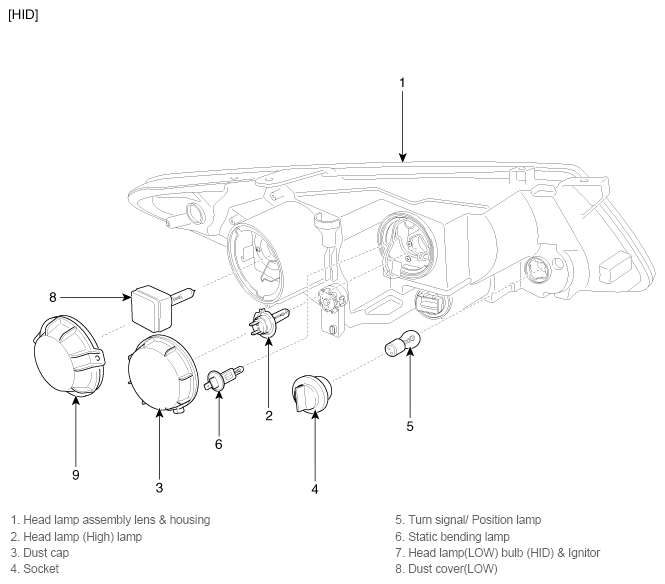

Fig 2: Head Lamps Components Location (HID)
G11818229Courtesy of KIA MOTORS AMERICA, INC.
