Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. It will be able to diagnose defects of hazard switch with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
  2. Select model and "BCM".
  3. Select the "SJB" to check.
  4. Select "Current data", if you will check current data of hazard switch. It provides input/output status of SJB.

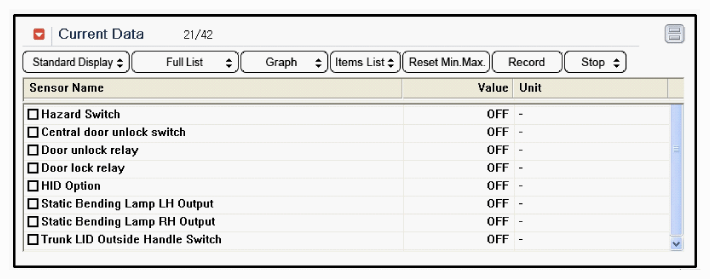

Fig 1: Display - Hazard Lamp Switch Current Data Screen
G11818272Courtesy of KIA MOTORS AMERICA, INC.
