Self Diagnosis

WARNING: This page is about a different variant/trim than selected.

Self-diagnosis process

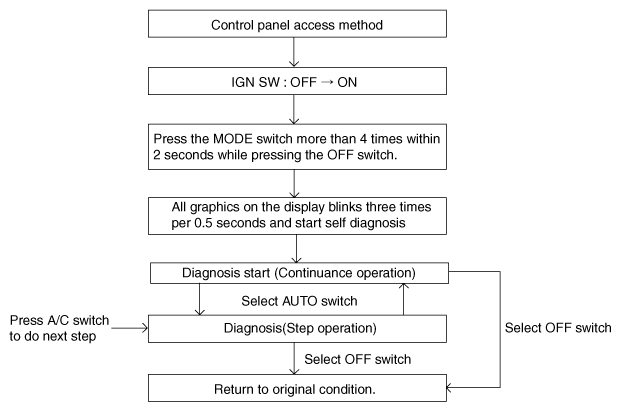

Fig 1: Self-Diagnosis Process Chart
Courtesy of KIA MOTORS AMERICA, INC.

How to read self-diagnostic code

After the display panel flickers three times every 0.5 second, the corresponding fault code flickers on the setup temperature display panel every 0.5 second and will show two figures. Codes are displayed in numerical format

Fault code

Display	Fail description
00	Normal
11	In-car sensor open
12	In-car sensor short
13	Ambient sensor open
14	Ambient sensor short
17	Evaporator sensor open
18	Evaporator sensor short
19	Temp door potentiometer open/short - Drive
20	Temp door potentiometer fault - Drive
21	Mode door potentiometer open/short
22	Mode door potentiometer fault
23	Auto defog sensor open
24	Auto defog sensor short
25	Intake door potentiometer open
26	Intake door potentiometer short
32	Temp door potentiometer open/short - Passenger
33	Temp door potentiometer fault - Passenger
43	Defog door potentiometer open/short
44	Defog door potentiometer fault
45	APT CAN signal fault
47	RPM CAN signal fault
48	Vehicle speed CAN signal fault
49	Engine coolant temp CAN signal fault
50	Cluster ion generator fault
71	ECV fault (open)

Fault code display
1. Continuance operation: DTC code is one.

  Fig 2: DTC Code Timing Pattern (One)
  Courtesy of KIA MOTORS AMERICA, INC.
2. Continuance operation: DTC code is more two.

  Fig 3: DTC Code Timing Pattern (Two)
  Courtesy of KIA MOTORS AMERICA, INC.
3. STEP operation
  1. Normal or one fault code is same as a continuance operation.
  2. DTC code as more two.
  Fig 4: DTC Code Timing Pattern (Two Or More)
  Courtesy of KIA MOTORS AMERICA, INC.
If fault codes are displayed during the check, Inspect malfunction causes by referring to fault codes.
Fail safe
1. In-car temperature sensor: Control with the value of 25°C(77°F)
2. Ambient temperature sensor: Control with the value of 20°C(67°F)
3. Evaporator temperature sensor: Control with the value of -2°C(28.4°F)
4. Water temperature sensor: Control with the value of -2°C(28.4°F)/Estimated torque calculation: 90°C(194°F)
5. Temperature control actuator (Air mix potentiometer):
  If temperature setting 17°C-24.5°C, fix at maximum cooling position.

  If temperature setting 25°C-32°C, fix at maximum heating position.
6. Mode control actuator (Direction potentiometer):
  Fix vent position, while selecting vent mode.

  Fix defrost position, while selecting all except vent mode.
7. Intake control actuator:
  Fix fresh position, while selecting fresh mode.

  Fix recirculation position, while selecting recirculation mode.
