Section 25 (Automatic Transaxle Control System (HEV))
>>
SS-B Solenoid Valve (ON/OFF)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

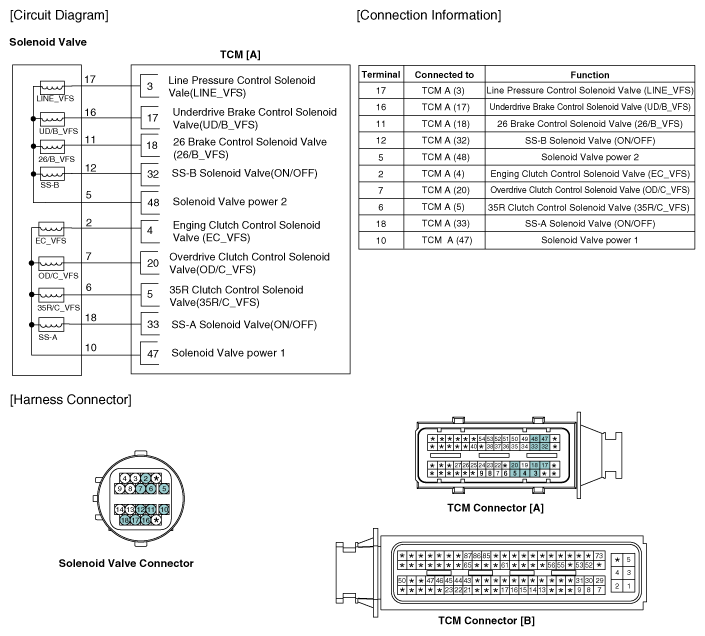

Fig 1: Solenoid Valve Circuit Diagram And Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
