Repair Procedures: Installation

WARNING: This page is about a different variant/trim than selected.

Install in the reverse order of removal.
NOTE:
- When installing, apply the ATF oil or petroleum jelly to the O-rings (A) to prevent damage.

  Fig 1: Application Areas On O-Rings With ATF Oil Or Petroleum Jelly
  Courtesy of KIA MOTORS AMERICA, INC.
- The existing valve body cover gasket (A) must be replaced with a new one. (Do not reuse it.)

  Fig 2: Installing Valve Body Cover Gasket
  Courtesy of KIA MOTORS AMERICA, INC.
- The existing eyebolt washers (8 pcs) must be replaced with new ones. (Do not reuse them.)

  Fig 3: Locating Eyebolt Washers
  Courtesy of KIA MOTORS AMERICA, INC.
Perform the procedures below after installing.
1. Refill the automatic transaxle with fluid.
  (Refer to "Fluid ".)
2. Refill the engine & transaxle system with coolant.
  (Refer to Coolant . )
3. Refill the hybrid motor cooling system with coolant and then perform the air bleeding using the KDS/GDS.
  (Refer to Coolant . )
4. Reset the automatic transaxle adaptive values using the KDS/GDS.

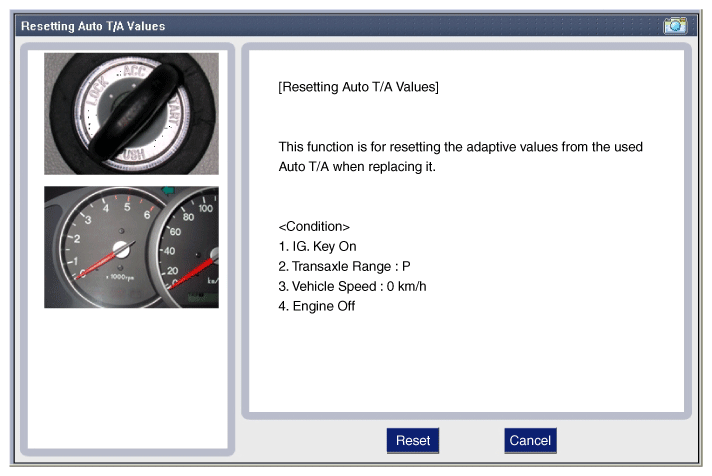

  Fig 4: Screen Display - Resetting Auto T/A Values
  Courtesy of KIA MOTORS AMERICA, INC.
5. Perform the TCM adaptive values learning procedure.
  (Refer to "TCM Learning Procedure ".)
6. Confirm that there is no fluid leakage on connections in the engine starting condition.
