Section 25 (Automatic Transaxle Control System (HEV))
>>
Inhibitor Switch
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

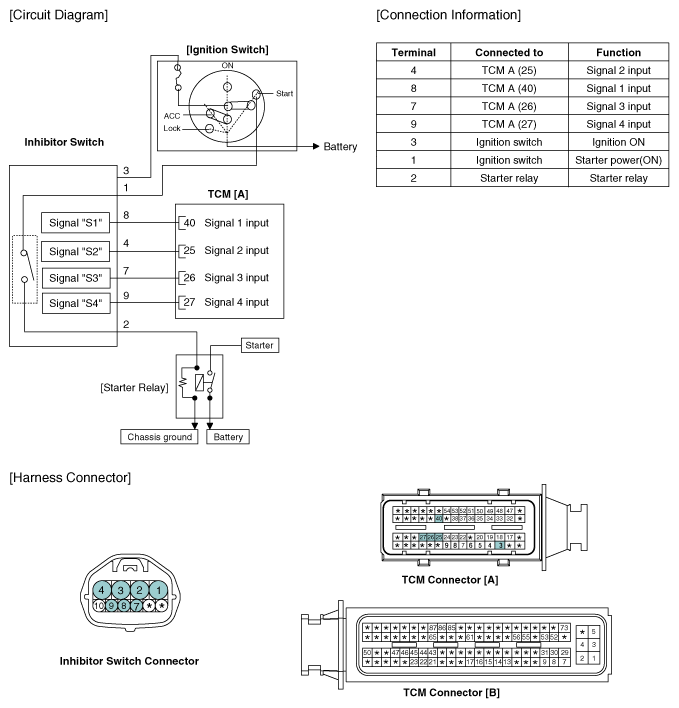

Fig 1: Inhibitor Switch Circuit Diagram & Terminal Description
Courtesy of KIA MOTORS AMERICA, INC.
