Section 25 (Automatic Transaxle Control System (HEV))
>>
26 Brake Control Solenoid Valve(26/B_VFS)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

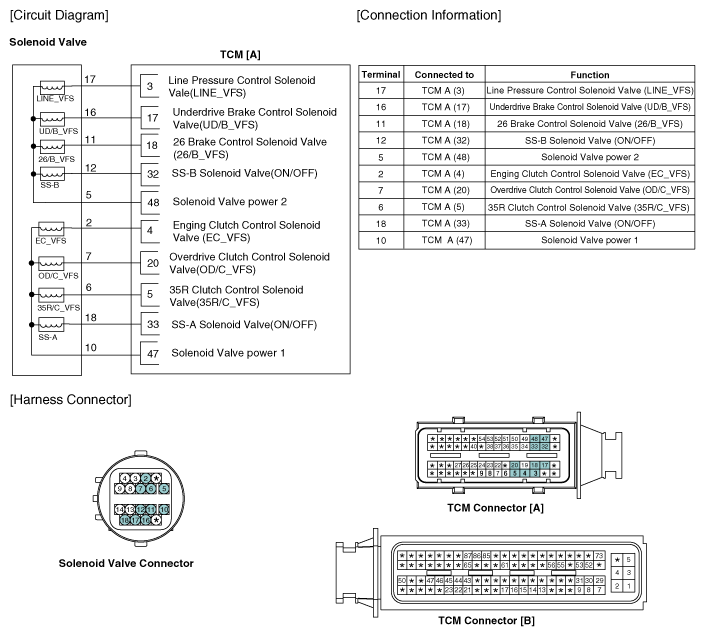

Fig 1: Solenoid Valve Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
