Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

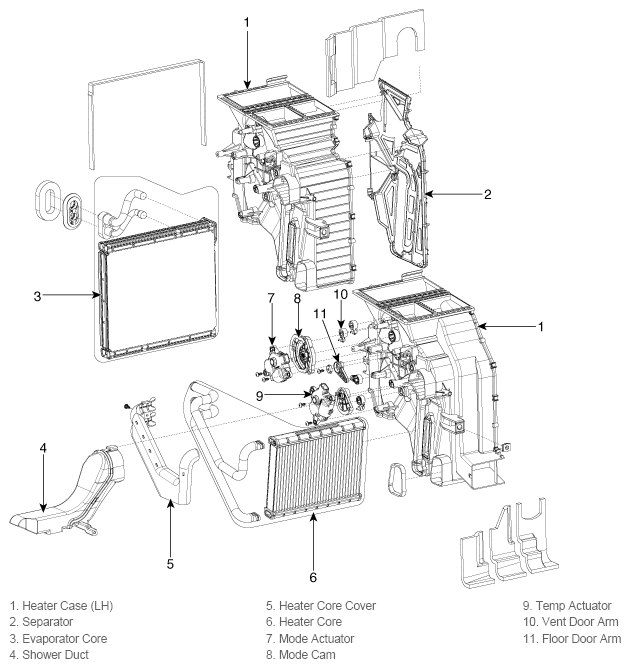

Fig 1: Heater Unit Components Location And Description (1 Of 2)
G11818491Courtesy of KIA MOTORS AMERICA, INC.

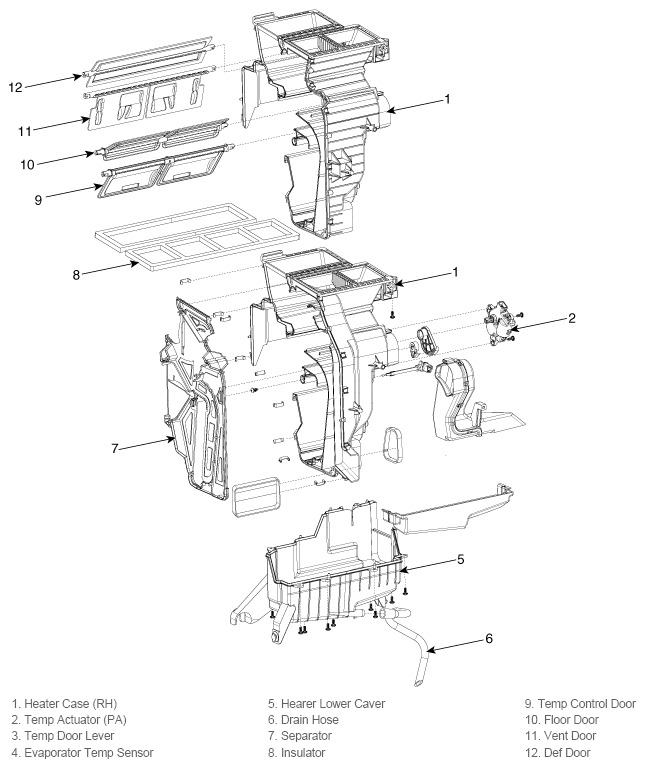

Fig 2: Heater Unit Components Location And Description (2 Of 2)
G11818492Courtesy of KIA MOTORS AMERICA, INC.
