Section 21 (Windshield Wiper/Washer System (HEV))
>>
Rain Sensor
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

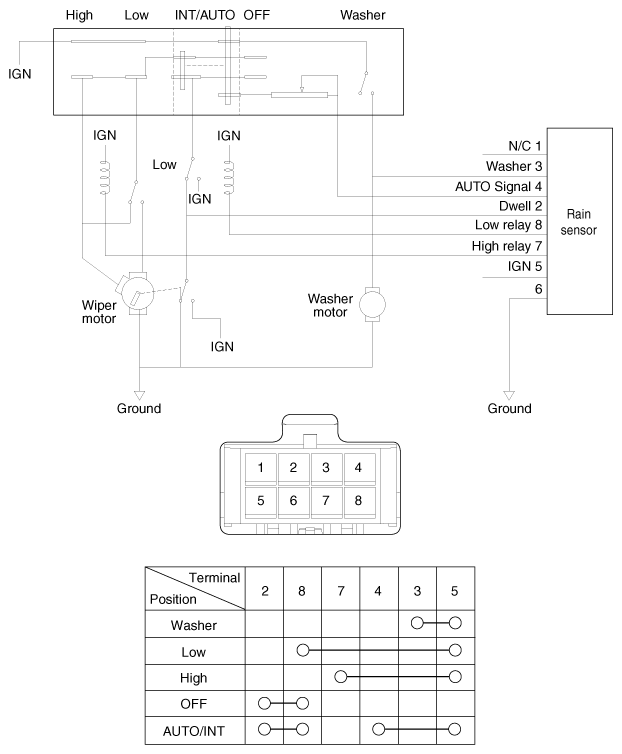

Fig 1: Rain Sensor Schematic Diagrams & Continuity Reference Chart
Courtesy of KIA MOTORS AMERICA, INC.
