Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

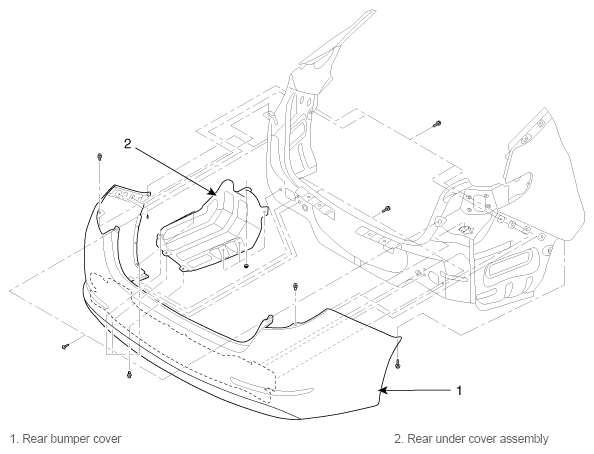

Fig 1: Rear Bumper Components Location (1 Of 2)
G11817168Courtesy of KIA MOTORS AMERICA, INC.

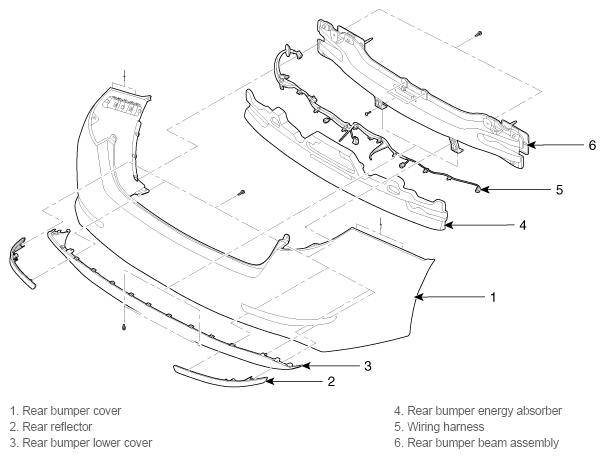

Fig 2: Rear Bumper Components Location (2 Of 2)
G11817169Courtesy of KIA MOTORS AMERICA, INC.
