Repair Procedures: Replacement

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Put on gloves to protect your hands.
  • Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
  • Take care not to bend or scratch the cover and other parts.
  1. After loosening the mounting bolts and clips, then remove the radiator grill upper cover (A).
    Fig 1: Removing Radiator Grill Upper Cover
    G11817163Courtesy of KIA MOTORS AMERICA, INC.
  2. After loosening the front bumper side mounting screw, disconnect the side.
    Fig 2: Loosening Front Bumper Side Mounting Screw
    G11817164Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the front bumper by pulling up the side of the front bumper and then pull it out.
    CAUTION:
    • When you pull out the front bumper, the side part of the front bumper could be damaged by the projection (A).

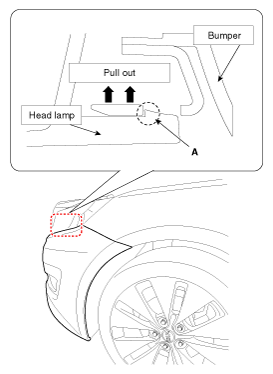

    Fig 3: Removing Front Bumper
    G11817165Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the front bumper lower mounting clips.
    Fig 4: Removing Front Bumper Lower Mounting Clips
    G11817166Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the fog lamp connectors (A).
  6. Remove the front bumper.
    Fig 5: Disconnecting Fog Lamp Connectors
    G11817167Courtesy of KIA MOTORS AMERICA, INC.
  7. Installation is the reverse of removal.
    NOTE:
    • Replace any damaged clips.
    • Make sure the connector is plugged in properly.
