Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

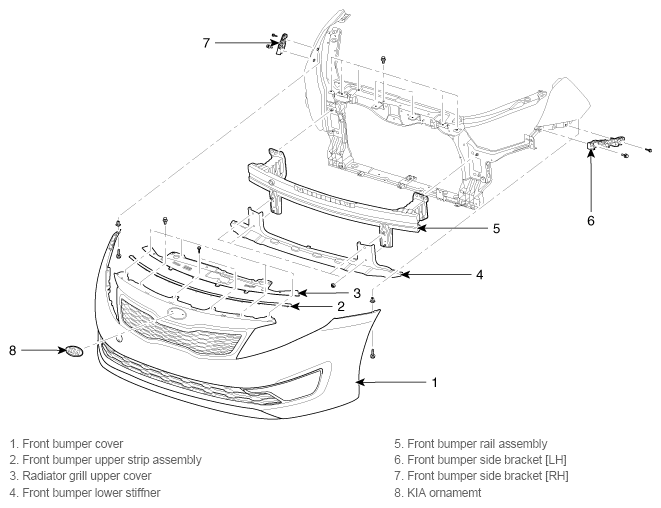

Fig 1: Front Bumper Components Location (1 Of 2)
G11817161Courtesy of KIA MOTORS AMERICA, INC.

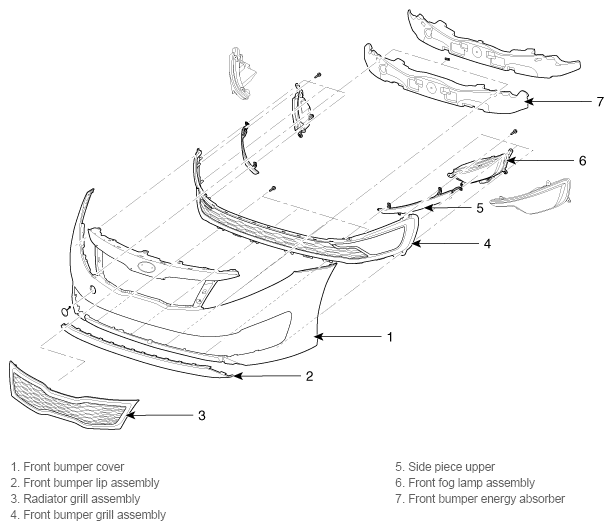

Fig 2: Front Bumper Components Location (2 Of 2)
G11817162Courtesy of KIA MOTORS AMERICA, INC.
