Components And Components Location: Component: Notes

WARNING: This page is about a different variant/trim than selected.

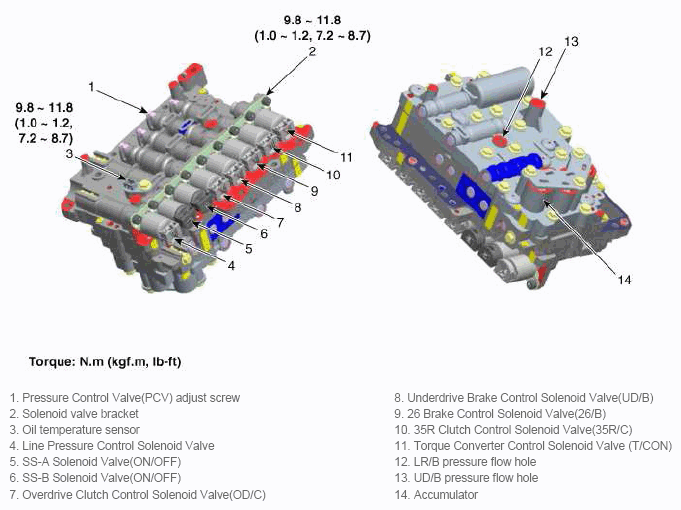

Fig 1: Exploded View Of Valve Body With Torque Specification
G11815900Courtesy of KIA MOTORS AMERICA, INC.
