Section 14 (Hydraulic System (HEV))
>>
Electric Oil Pump (EOP)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

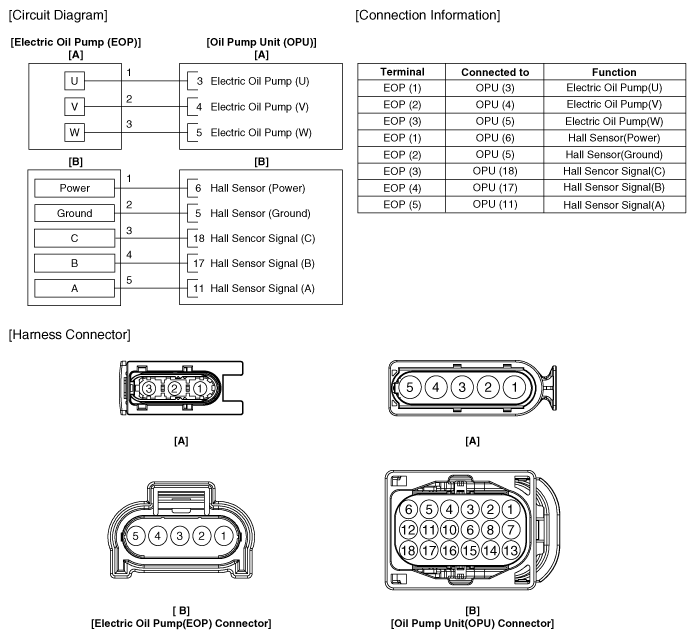

Fig 1: Electric Oil Pump Operation Schematic Diagrams & Terminal Descriptions
Courtesy of KIA MOTORS AMERICA, INC.
