Section 13 (Hybrid Motor Cooling System (HEV))
>>
Radiator
>>
Components And Components Location
>>
Components Location
Components Location
WARNING:
This page is about a different variant/trim than selected.

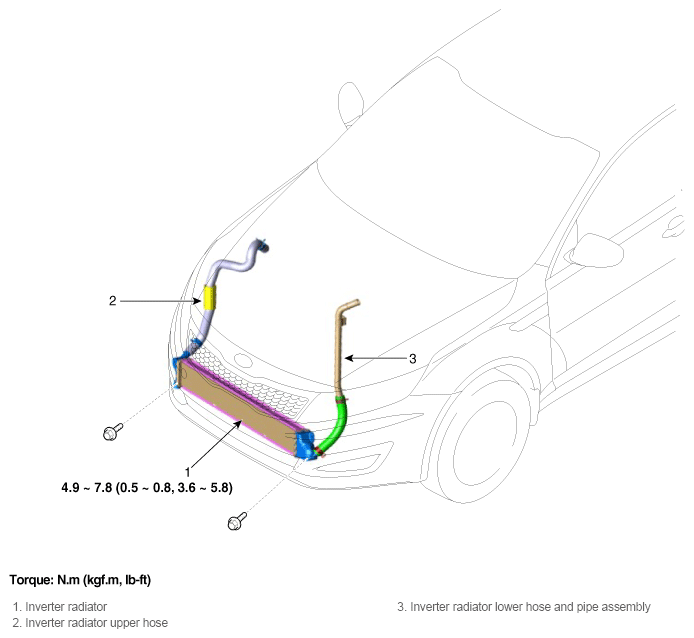

Fig 1: Radiator Components Location And Description
Courtesy of KIA MOTORS AMERICA, INC.
