Section 12 (Hybrid Control System (HEV))
>>
Hybrid Control Unit (HCU)
>>
Schematic Diagrams
>>
Circuit Diagram
Circuit Diagram
WARNING:
This page is about a different variant/trim than selected.

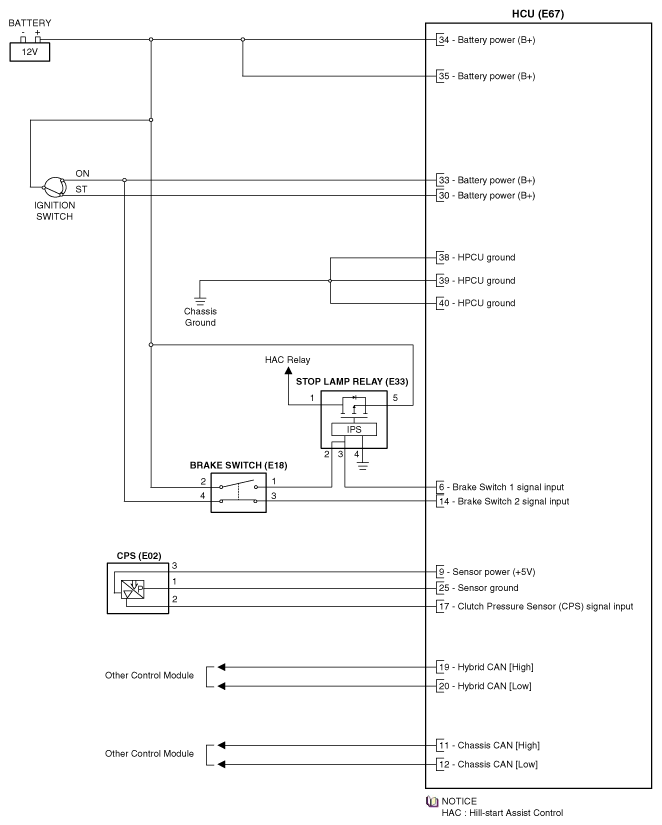

Fig 1: HCU Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
